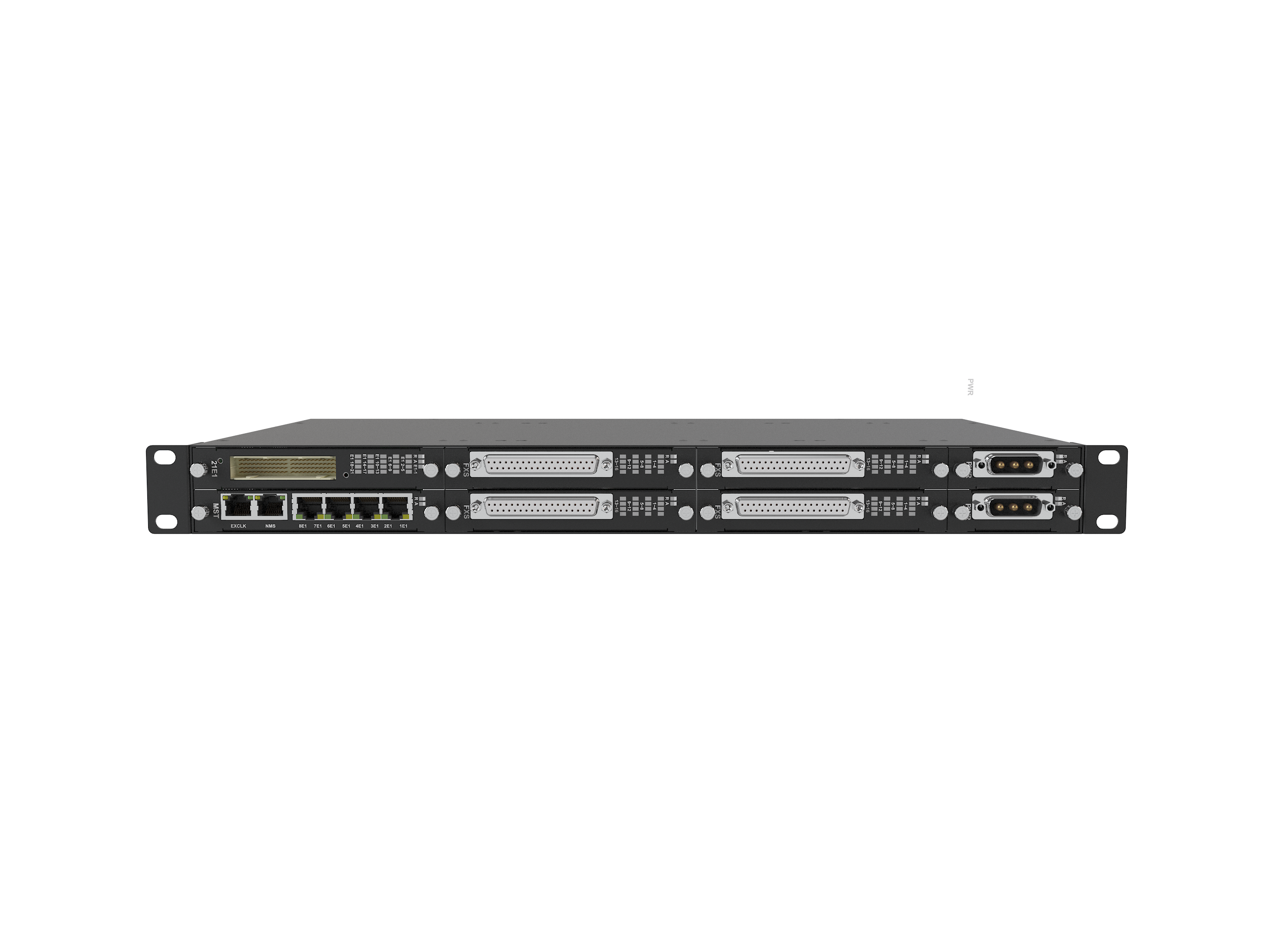

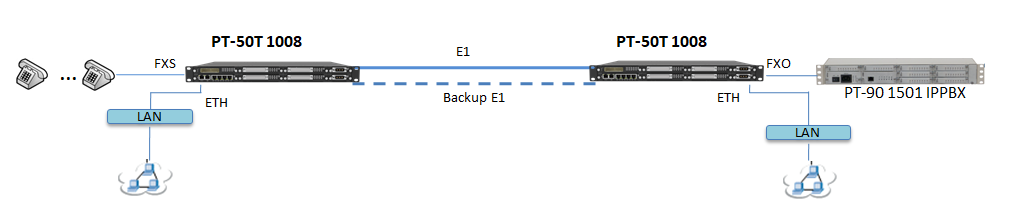

PT-50T 1080 PCM Equipment
The PT-50T 1080 PCM equipment is a new-generation PCM device developed and produced with fully domestic components and completely independent and controllable technology.
The PT-50T 1080 equipment provides standard E1 electrical port access, and the branch side supports PCM access including automatic telephony, magneto telephony, low-speed data, 2/4-wire EM audio, K interface, C37.94, 64K synchronous G703, N*64K Ethernet, etc.
It can meet the access requirements for different bandwidths and various service interface types of private network users such as power distribution network intellectualization, industrial automation, transportation, railway and air traffic control, as well as major operator customers.
The equipment's network management system supports domestic independent innovation platforms, adopts front-side card insertion and front-side cable outgoing for services, and is equipped with a built-in intelligent fan unit.
ØService Capacity
l The main control board has 8*E1 processing capability;
l Maximum cross-connect capability: arbitrary cross-connection of all 64K time slots of 8*E1;
l Maximum number of accessed E1 users: 8;
l Maximum number of accessible FXO interfaces: 80 channels, 16 channels per single board;
l Maximum number of accessible FXS interfaces: 80 channels, 16 channels per single board;
l Maximum number of accessible magneto interfaces: 80 channels, 16 channels per single board.
ØOptional Service Access Types
l FXO, FXS, 2/4W E&M, RS232, RS485, V35, G703, ETH, carrier, magneto telephony, C37.94, 64K synchronous G703,
N*64K Ethernet, etc.;
l Supports asynchronous or synchronous data, and N*64K configuration of data ports.
ØSystem Capabilities
l subscriber line testing: Supports v line testing of FXS interfaces, and identifies subscriber line status including open circuit,
short circuit, ground fault, off-hook, on-hook, etc.;
l TS16 signaling conversion function: Supports online identification of the signaling format of third-party PCM equipment, and
adjusts the signaling format of the local system to be compatible with third-party PCM equipment to realize interconnection and
intercommunication;
l Equipment channel testing: Can test the analog level and EM signaling status of interfaces, and adjust the interface level.
ØRedundant Configuration
l Supports 1+1 protection for redundant power supply panel configuration;
l Supports 1+1 protection for E1 interfaces.
ØNetwork Management Interface
l Ethernet interface, supports out-of-band signaling network management for remote devices, and can realize remote network management
with the company's DXC equipment through a 2M channel.
ØService Capacity
l System service slots: 5 slots with hot-swappable boards;
l The system supports an 8-channel E1 64K full cross-connect matrix.
ØSystem Structure
l Structure type: Standard 19-inch 1U rack-mount;
l Card-type installation: 2 power supply board slots, 1 main control board slot, 5 service board slots.
| E1 Interface |
Bit rate: 2048Kbps ± 50ppm Code type: HDB3 code, G.703 standard Input impedance: 75Ω(default), 120Ω (optional) Frame structure: G.704, G.706 Compression law: G.711 |
| Optical interface |
Bit rate: 150Mbps ± 50ppm Output optical power: ≥-15dBm Receiving sensitivity: ≤-35dBm Optical wavelength: 1310nm/1550nm Optical interface connecter: SFP/LC |
| Power Supply |
Input voltage: -48Vdc and/or 220Vac Voltage range: -36Vdc ~ -74Vdc, 165Vac~265Vac Power consumption: <10W |
| Operation Environment |
Working temperature: -10°C ~ 50°C Working humidity: <=90 % (non condensed) |
