The device can support AC+DC power supply, 2 STM-1/STM-4 optical ports, 4 FE ports, and 3 slots for E1 cards and 64K PCM cards.

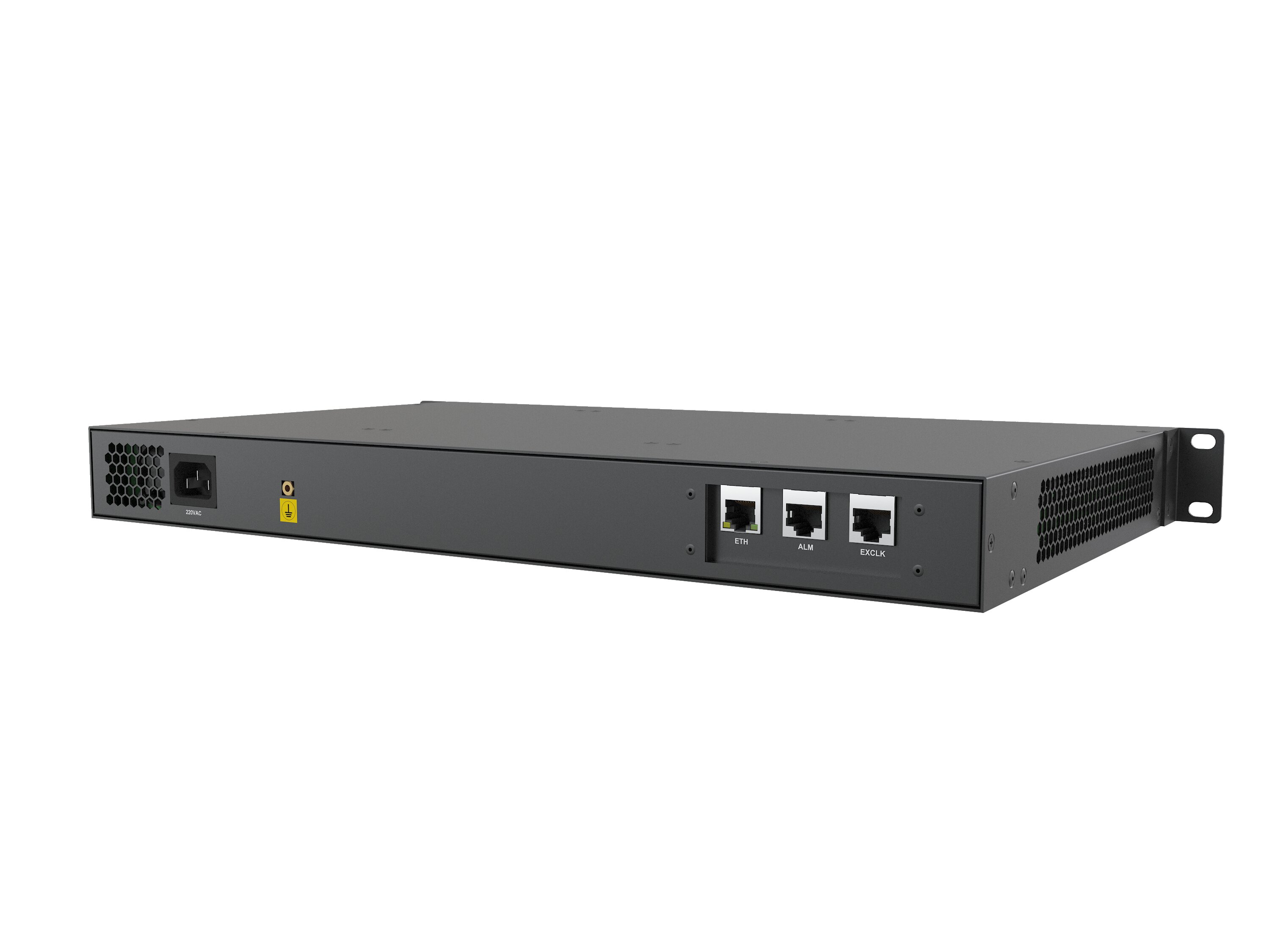

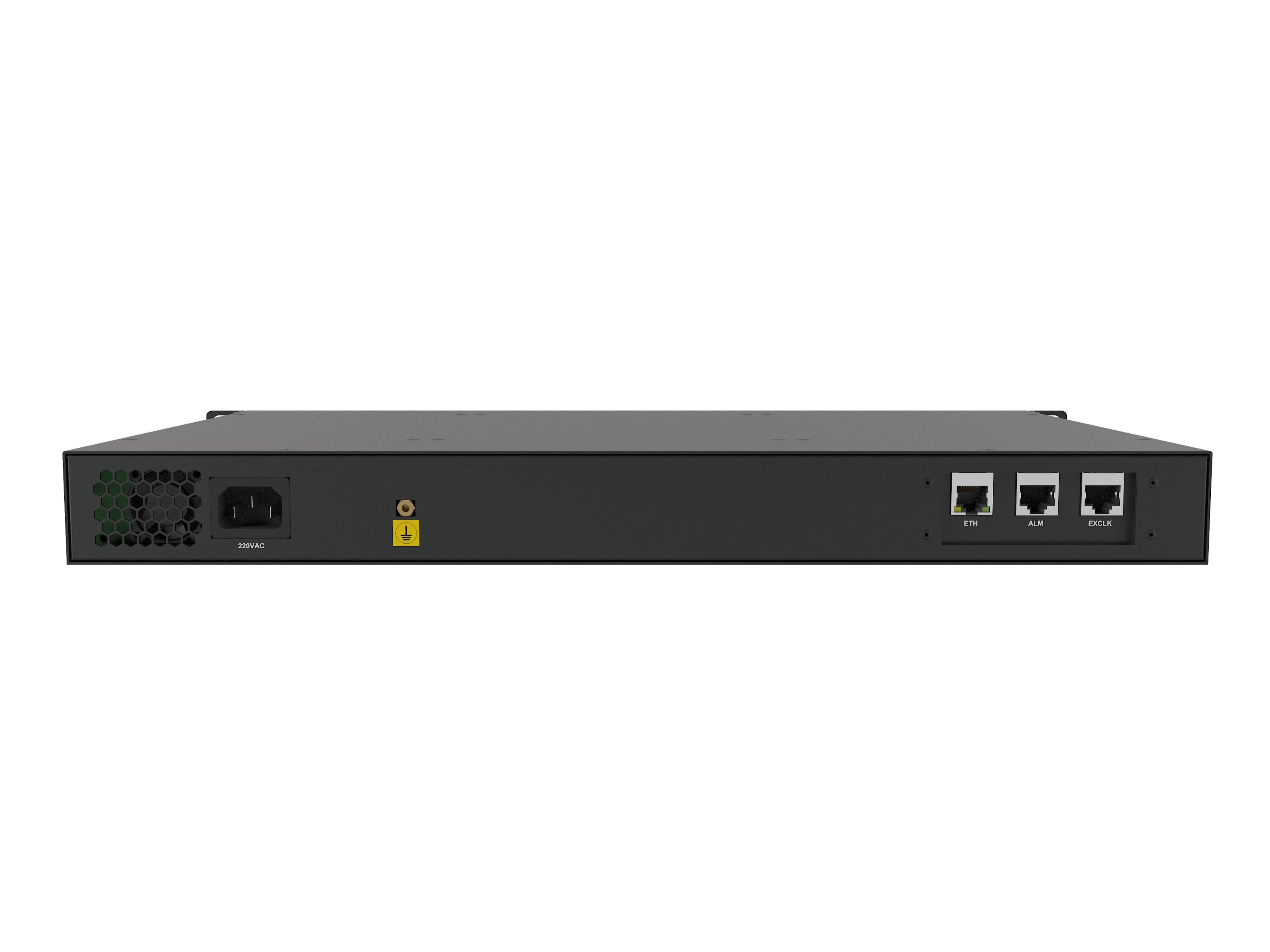

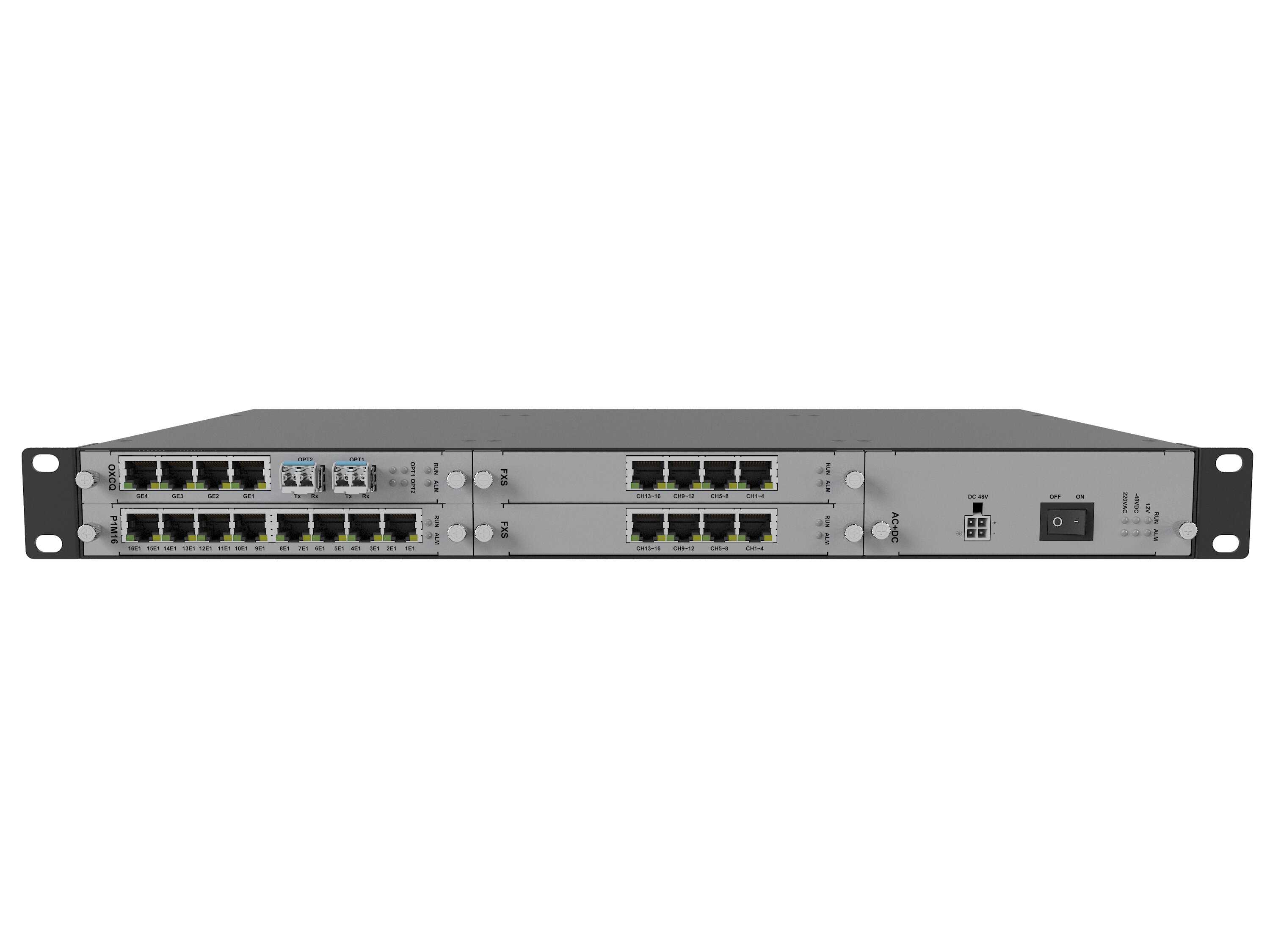

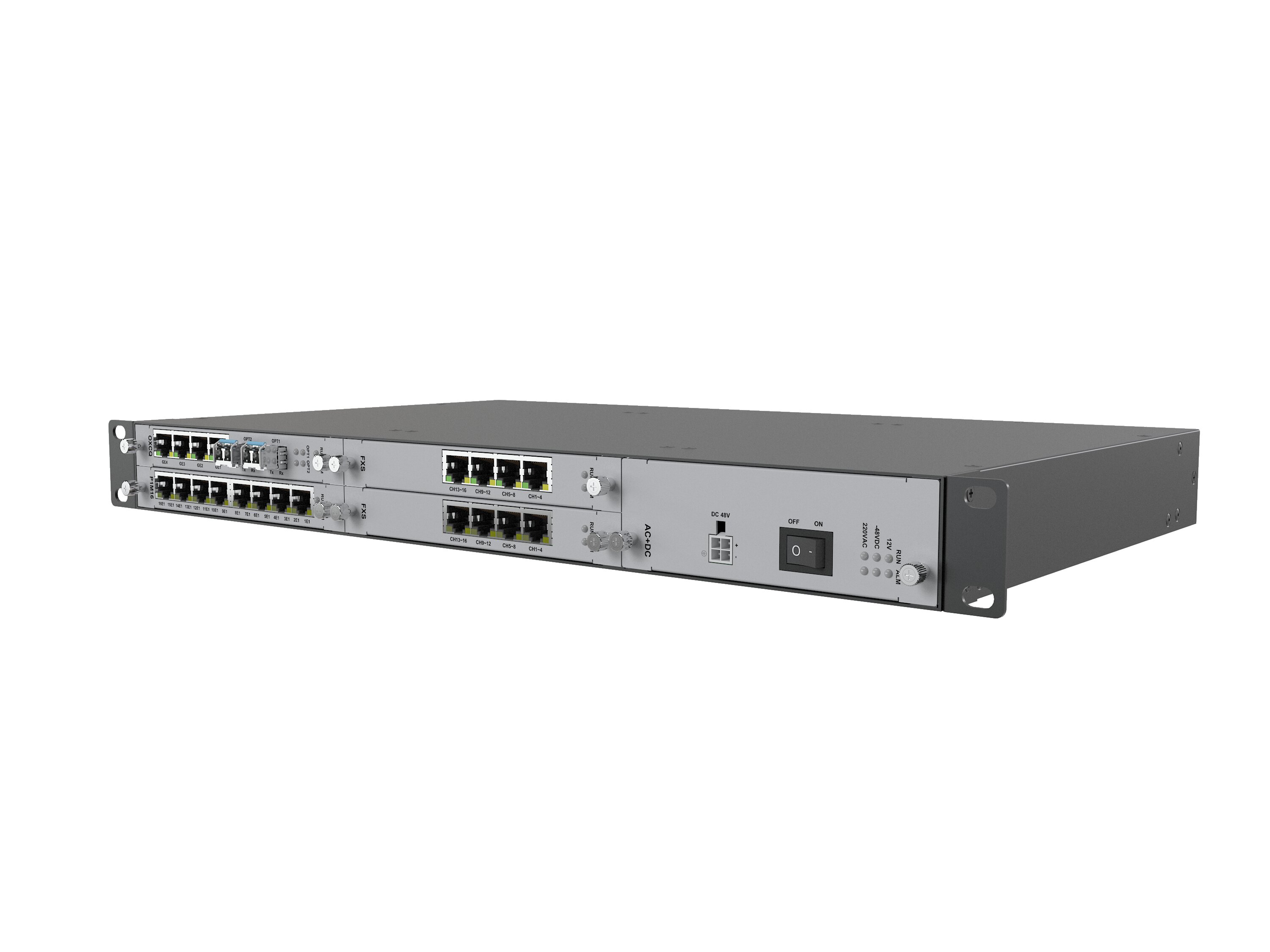

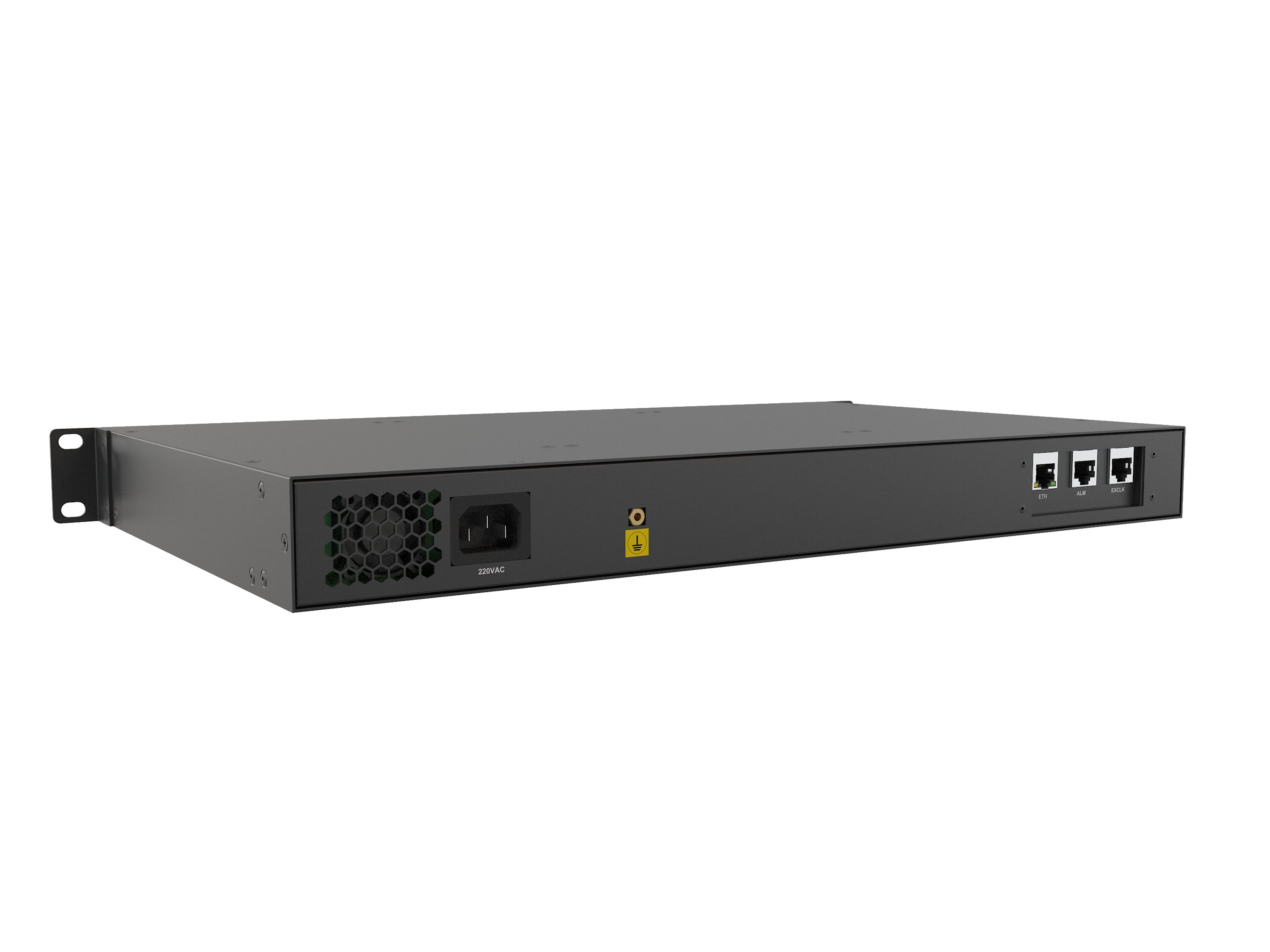

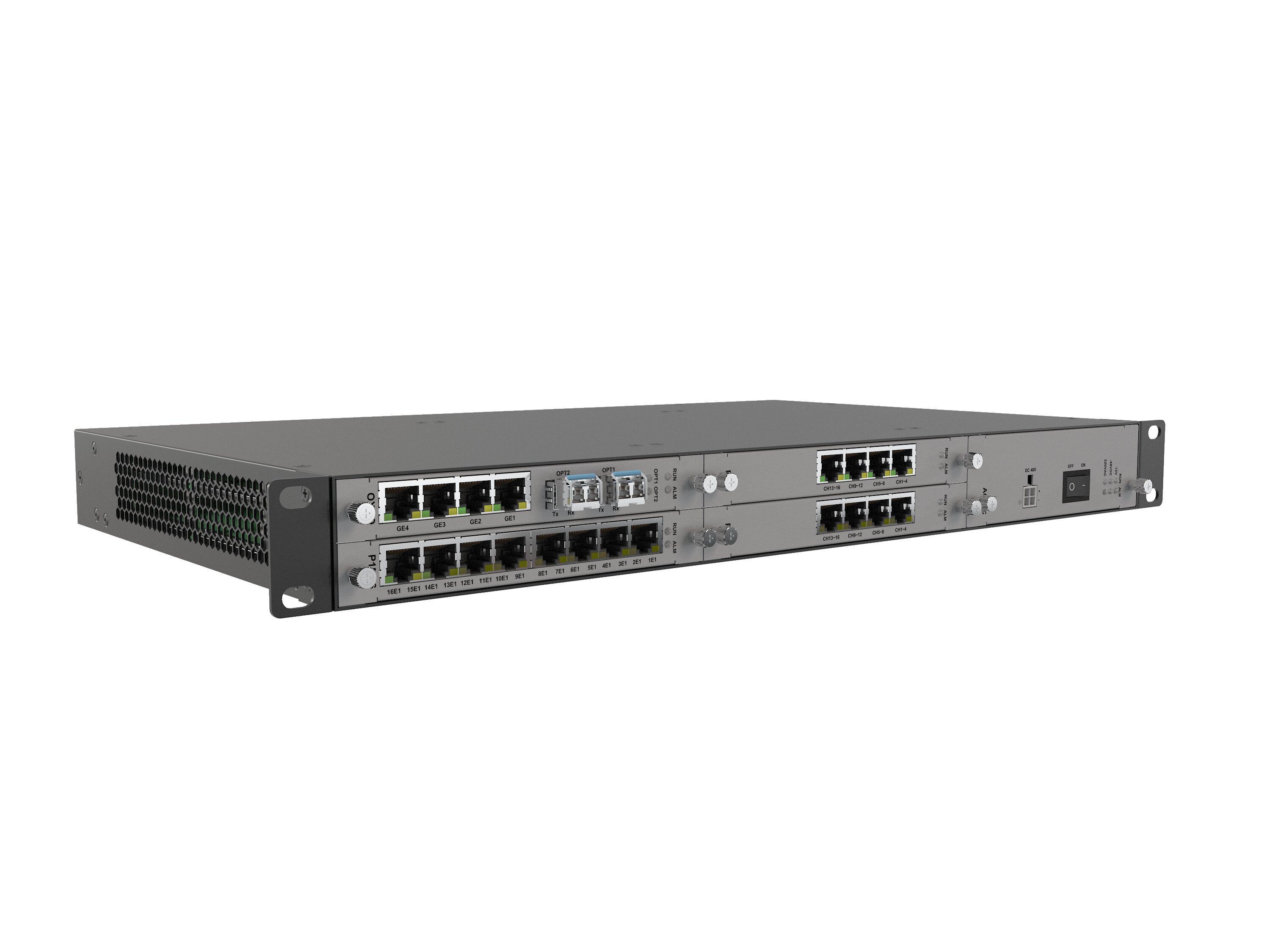

PT-60 1004 is a new generation, enhanced SDH / MSTP device. It is a carrier-class, high compact platform and aimed for metro and SDH networks access. It can work as Add-Drop Multiplexer (ADM), Termination Multiplexer (TM), and also as a Gigabit Ethernet to SDH converter.
PT-60 1004 with extremely strong cross-connection ability, it supports 64K up to low / high order of SDH cross-connection. Not only the STM-1 / STM-4 optical port can work as the network uplink, it can also configure the n x E1 ports as the network uplink simultaneously. The co-working optic and E1 network uplinks provides customer a very flexibly networking configuration.
Any combination of AC, DC dual power is supported, and equipped on a 1U height, 19 inches width rack mountable casing. Such powerful cross connect switch, flexible networking, link protection and redundancy power supply, various voice / data services which make PT-60 1004 the most function rich, reliable and cost effective solution for seamlessly migration of the E1 TDM network onto the SDH network.
Ø Extra large scale switching capacity with 20x20 VC-4 or 556x556 VC12 non-blocking switching
Ø Reliable structure with 1 Master card, 1 power supply and 3 common slots for trunk and user cards
Ø Sophisticate configurable system protection with 1+1 MSP, SNCP network protection and 1+1 interface protection
Ø Versatile configurable function as SDH switch, DXC, TDMoIP switch, IPPBX or signaling gateway
Ø System supports 2 x STM-4, or 2 x STM-1 optical ports
Ø Ethernet supports 4 x FE electrical ports
Ø Data interface provides V35, FV35, RS232 for selection
Ø Analogue interface supports FXS, FXO, 4 wires E&M, MAG and HOT line
Ø IPS card can register 200 x SIP phones or defined as 100 x SIP trunks
Ø IPS card supports general PABX function with all kinds of call feature, such as caller display, call forward, call transfer, call waiting, call pickup, call back, call hunting, DND (Do Not Disturb), DID (Direct Inward Dial), DOD (Direct Outgoing Dial), CDR (Call Detail Record), IDD & DDD lock, wake-up call, voice mailbox, background music … etc.
| Optical Interface |
Bit rate: 155Mbps ±50ppm or 622 Mbps±50ppm Output optical power: ≥-15dBm Receiving sensitivity: ≤-35dBm Optical wavelength: 1310nm/1550nm Optical interface connecter: SFP/LC |
| E1 Interface |
Bit rate: 2.048Mbps 50ppm Code type: HDB3 code, G.703 standard Input impedance: 75 or 120 Frame structure: G.704, G.706 Jitter: G.742, G.823 |
| Ethernet Interface |
Bit rate: 10/100Mbps, half/full duplex auto Standard: IEEE 802.3, IEEE 802.1Q (VLAN) Connector: RJ45 |
| Power Supply |
Input voltage: -48Vdc or 220Vac Voltage range: -36Vdc ~ -72Vdc, 176Vac ~ 264Vac Power consumption: <50W |
| Operation Environment |
Working temperature: -10°C ~ 50°C Working humidity: 5% ~ 95 % (non-condensed) Storage temperature: -40°C ~ +80°C |

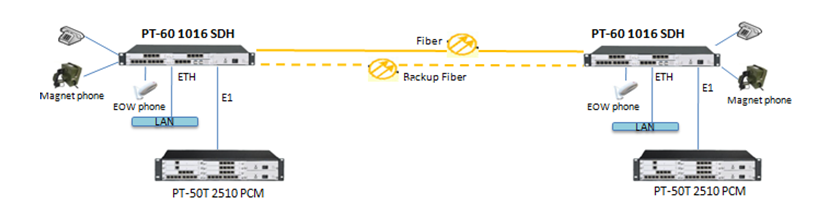

Diagram 1: Point to point through fiber network

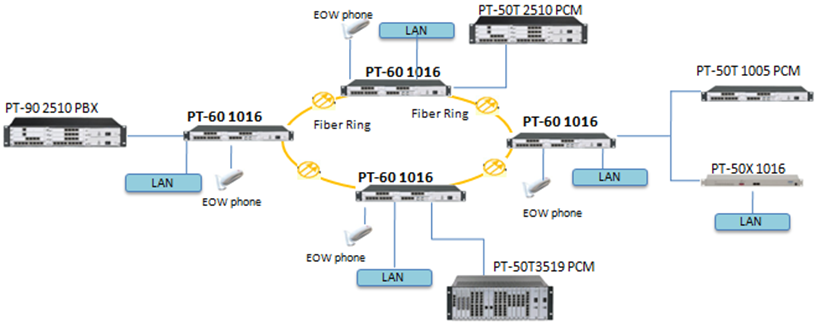

Diagram 2: Ring application
